High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device

I'm Online Chat Now
I want to say that your products are very good. Thank you for all your suggestion, also good after sales service.

—— Diego Rodofeli

You always suggestion and efforts help us a lot,. Hope we build long time cooperationship

—— Lic. Aldo L. Cavallaro A.

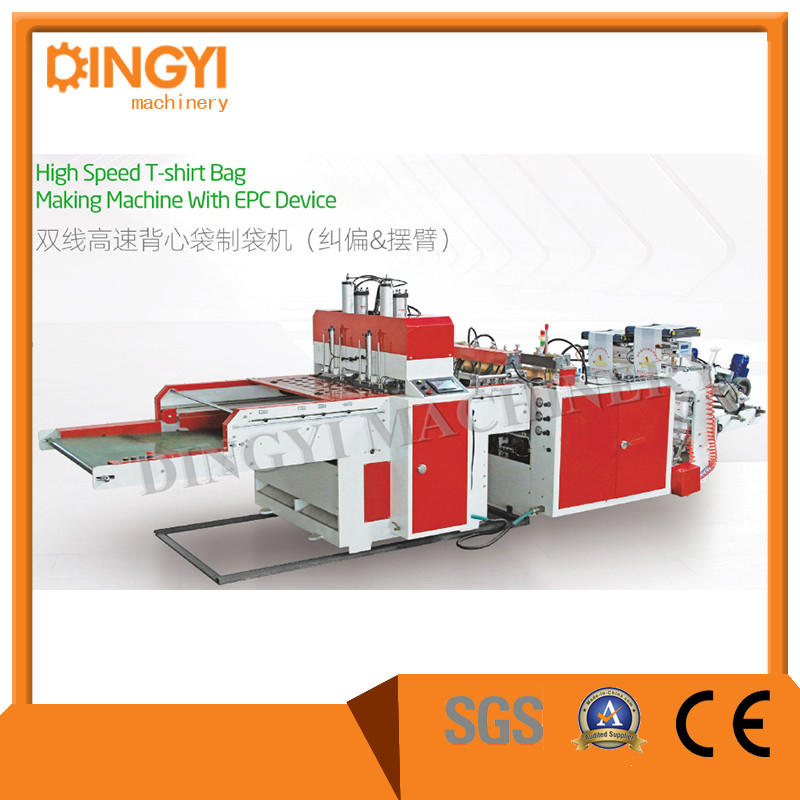

High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device Get Best Price

Product Details:
Place of Origin: ZHEJIANG CHINA
Brand Name: DINGYI
Certification: SGS CE
Model Number: HSGN-450X2
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden and Soft Packing
Delivery Time: 50 Days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per year
Detailed Product Description
Bag Type: T-shirt Bag Material: PE. HDPE. LDPE
Product Name: Fully Automatic PE Bag Making Machine Servo Motor: Japan Yaskawa
High Light:

6000mm Polybag Manufacturing Machine

,

650mm Polybag Manufacturing Machine

,

650mm Polypropylene Bag Making Machine

High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device









Parameter:



Model HSGN-450X2 HSGN-600X2 HSGN-600
Production Line 2Lines 2Lines 1Line
Width of bags 200-400mm 250-520mm 300-550mm
Length of bags 300-650mm 350-900mm 350-900mm
Production Speed 150-250pcs/min*2Lines 120-250pcs/min*2Lines 150-250pcs/min
Film thickness 10-55 mirco 10-55 mirco 10-55 mirco
Film Unwind Diameter 900mm 900mm 900mm
Air consumption 2HP 2.5HP 2HP
Main power 14KW 15KW 11KW
Machine weight 2600KG 3100KG 2300KG
Machine Diameter (LxWxH) 6000x1500x1900mm 7500x1700x1900mm 7000x1300x1900mm

















































Application

These machines are heat sealing and heat cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE.



FEATURES:

1. Suit for HDPE,LDPE T-Shirt Bag

2. With EPC Vibration rectification device

3.  Driven by Servo Motor

4.  High Efficency, easy and Stable Operation







High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device





Sample Of plastics Bag



High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device



 Details of Machine



High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device



High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device



Work Shop For Bag Making Machine



High Speed Fully Automatic T-Shirt Bag Making Machine With EPC Device



FAQ--------------------------------------------------------------------------------------------------------------------------------------------


1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Rui`an City,Zhejiang Province,China
From SHANGHAI by air is 40mins,by train is 4hours.
From GUANGZHOU by air is 2hours.
3.Q:How many years warranty?Can you teach us?
A:In usually is one years warranty.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram ETC.
