Bag Type: | T-shirt Bag | Material: | PE. HDPE. LDPE |
---|---|---|---|
Product Name: | Fully Automatic PE Bag Making Machine | Servo Motor: | Japan Yaskawa |
High Light: | 250mm Polythene Bag Machine,Independent Unwinder Polythene Bag Machine,grocery bag making machine |

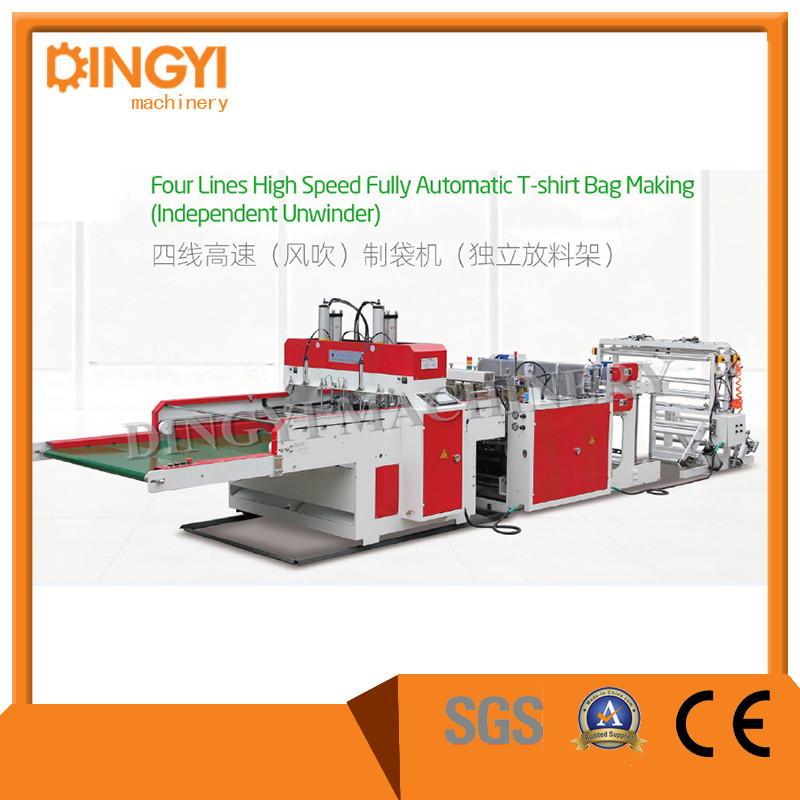

Four Lines High Speed Fully Automatic T-Shirt Bag Making Machine (Independent Unwunder)
FEATURES:
1. Suit for HDPE,LDPE , printing or non-printing T-Shirt Bag
2. Independent unwin unit
3. Synchronous four lines opeartion
4. Four lines proudctuon for small bags
5. Two lines production for big bags
Application
These machines are heat sealing and heat cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE.
Parameter:
Model | HSG-300X4 | HSG-900 |
Production Line | 4Lines/2Lines | 1Line |
Width of bags | 170-250mm four lines | 500-850mm |
Length of bags |
250-520mm for two lines 350-900mm |
500-1200mm |
Production Speed | 160-220pcs/min*4Lines | 60-120pcs/min |
Film thickness | 10-55 mirco | 10-55 mirco |
Film Unwind Diameter | 900mm | 900mm |
Air consumption | 3HP | 2HP |
Main power | 15KW | 13KW |
Machine weight | 3200KG | 2500KG |
Machine Diameter (LxWxH) | 8500x2000x1900mm | 7500x1700x1900mm |

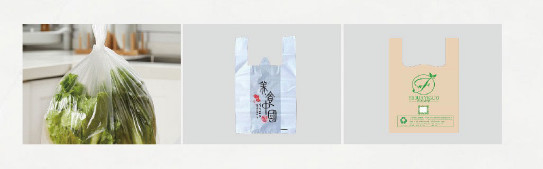

Sample Of plastics Bag
Work Shop For Bag Making Machine
FAQ--------------------------------------------------------------------------------------------------------------------------------------------
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Rui`an City,Zhejiang Province,China
From SHANGHAI by air is 40mins,by train is 4hours.
From GUANGZHOU by air is 2hours.
3.Q:How many years warranty?Can you teach us?
A:In usually is one years warranty.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram ETC.
