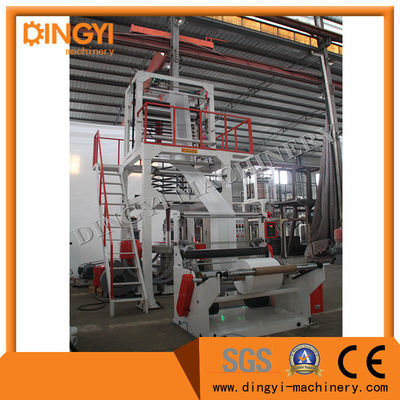

31Kw 1000mm Single Winder HDPE Monolayer Blown Film Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Blow Moulding Type: | Extrusion Blown Plastic Film | Material: | HDPE |
|---|---|---|---|
| Machine Type: | High Speed Film Blowing Machine | Motor: | Simens Brand |
| High Light: | HDPE Monolayer Blown Film Machine,31Kw Monolayer Blown Film Machine,1000mm Blown Film Extrusion Machine |
||
MONO LAYER FILM BLOWING MACHINE
Blown Film Equipment Features:
Single Winder , Screen Changer ,
Delta Inverter For (The Main Motor, Take-up Motor, Winder And Air Blower,)
Banana Roller , Air Blower
Main Specification:
| MODEL | DY/H-45E | DY/H-50E | DY/H-55E | DY/H-65E |
| SUITABLE MATERIAL | HDPE | |||
| FILM WIDTH | 300-600mm | 300-800mm | 400-1000mm | 600-1300mm |
| FILM THICKNESS | 0.009-0.05mm | 0.009-0.05mm | 0.009-0.10mm | 0.01-0.10mm |
| MAX.EXTRUSION OUTPUT | 30-55kg/hr | 35-70kg/hr | 40-85kg/hr | 60-110kg/hr |
| EXTRUDER | ||||
| SCREW DIAMETER | φ45 | φ50 | φ55 | φ65 |
| SCREW L/D LENGTH | 30:1 | |||
| SCREW MATERIAL | SACM-645/38 CRMOALA | |||
| CYLINDER MATERIAL | SACM-645/38 CRMOALA | |||
| CYLINDER COOLING | 370W×2 | 370W×2 | 550W×3 | 550W×4 |
| DRIVING MOTOR | 15Kw | 18.5Kw | 22Kw | 37Kw |
| TEMPERATURE CONTROL | 3 | 3 | 3 | 4 |
| AVERAGE POWER-CONSUME | 18Kw | 26Kw | 31Kw | 45Kw |
| TYPE OF DIE | ||||
| DIE SIZE | φ60/80 | φ80/100 | φ100/120 | φ100/120 |
| CENTER STEADY STICK | 2 | |||
| TEMPERATURE CONTROL | 3 | |||
| AIR RING | 1 | |||
| AIR BLOWER | 1.5Kw | 2.2Kw | 3Kw | 5.5Kw |
| TAKE-UPUNIT | ||||
| ROLLER WIDTH | φ165×650mm | φ165×850mm | φ165×1100mm | φ165×1400mm |
| EFFECTIVE WIDTH | 600mm | 800mm | 1000mm | 1300mm |
| TAKE-UP SPEED | 10-100m/min | 10-100m/min | 10-90m/min | 10-90m/min |
| TAKE-UP MOTOR | 0.75Kw | 1.5Kw | 1.5Kw | 1.5Kw |
| HEIGHT ADJUSTABLE TYPE | 700mm | |||
| WINDING UNIT | ||||
| TYPE | SURFACE FRICTION TYPE | |||
| WINDING MOTOR | 6N.m | 10N.m | 16N.m | 16N.m |
| WINDING SPEED | 10-100m/min | 10-100m/min | 10-90m/min | 10-90m/min |
| OVERALL DIMENSION(L×W×H) | 4.0×2.0×4.5m | 4.0×2.5×4.5m | 4.8×2.8×5.2m | 5.2×3.4×5.8m |
1. Suitable Material: HDPE,
2. The machine body is U-Steel frame. And the main machine is collocated with low-center gear box, with advantages of stable transmission, large torque, and convenient repair.
3. The machine cylinder and screw adopt 38 crmoala alloy steel, after nitrogen treatment, it has high rigidity, good anti-corrosive performance and is rather durable.
4. During heating course, this machine can automatically control and regulate temperature according to craft requirements, with simple operation.
5. The traction device is stepless speed regulation, with board regulation range, stable and reliable.
