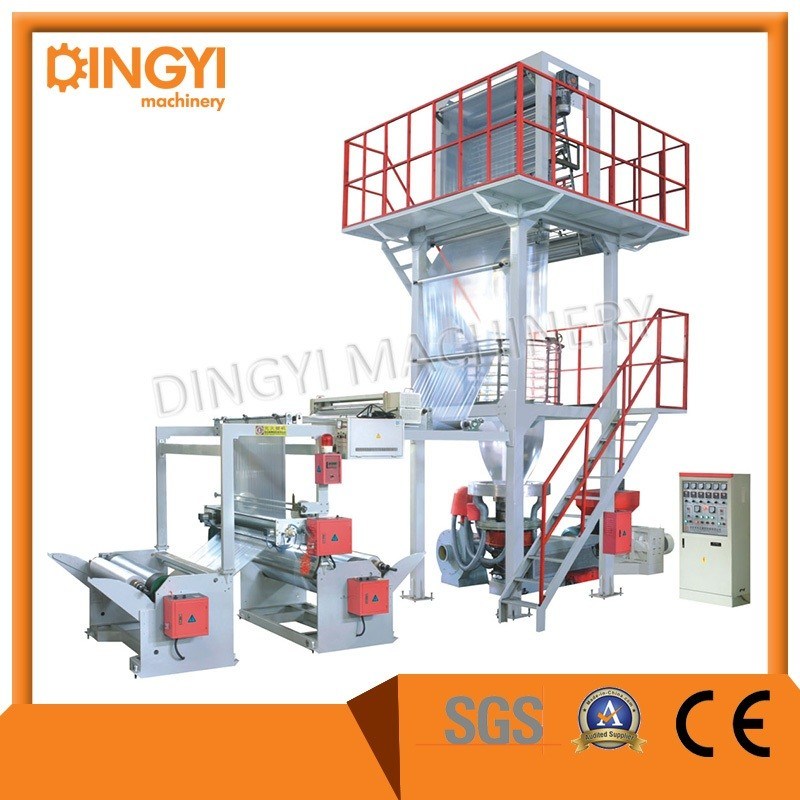

Monolayer Blown Film Line

large.img.alt
small.img.alt

Large Image :  Monolayer Blown Film Line Get Best Price

Product Details:
Place of Origin: ZHEJIANG CHINA
Brand Name: DINGYI
Certification: SGS CE
Model Number: DY/HL
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden And Soft Packing
Delivery Time: 30Days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets Per Year
Detailed Product Description
Blow Moulding Type: Extrusion Blown Plastic Film Material: HDPE LDPE LLDPE
Machine Type: High Speed Film Blowing Machine Motor: Simens Brand
High Light:

22KW Monolayer Blown Film Line

,

5.5m Monolayer Blown Film Lines

,

Mono layer Blown Film Line

HIGH SPEED HDPE LDPE LLDPE FIM BLOWING MACHINE
It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.




Blown Film Equipment Features:

Rotary Die

Double Winder , Screen Changer ,

Delta Inverter For (The Main Motor, Take-up Motor, Winder And Air Blower,)

Siemens Switch Box Contactor




Main Specification:





MODEL DY/HL-45EZ DY/HL-50EZ DY/HL-55EZ DY/HL-65EZ
MATERIAL HDPE LDPE LLDPE
FILM WIDTH 300-600MM 300-800MM 400-1000MM 600-1300MM
FILM THICKNESS

(HD) 0.009-0.08MM

(LD) 0.02-0.15 MM

0.009-0.08 MM

0.02-0.15 MM

0.01-0.08MM

0.02-0.15MM

0.01-0.08MM

0.03-0.15MM

MAX.EXTRUSION OUTPUT

HD) 30-45KG/HR

(LD) 40-50KG/HR

35-60KG/HR

50-70KG/HR

40-80KG/HR

60-100KG/HR

60-125KG/HR

80-150KG//HR

EXTRUDER
SCREW DIAMETER Φ45 Φ50 Φ55 Φ65
SCREW L/D 30:1
DRIVING MOTOR 15KW 18.5KW 22KW 37KW
DIE SIZE

HD Φ60/50

LD Φ100/120

Φ80/100

Φ120/150

Φ100/120

Φ200/250

Φ100/120

Φ250/300

TAKE-UP ROLLER Φ165×650 Φ165×850 Φ165×1100 Φ165×1400
TAKE-UP MOTO 0.75KW 1.5KW 1.5KW 1.5KW
WINDING MOTOR 8N/M 10N/M 10N/M 16N/M
DIMENSION 5.0×2.0×4.2m 5.0×2.2×5.0m 5.5×2.5×5.5m 5.8×2.8×6.5m



Monolayer Blown Film Line
