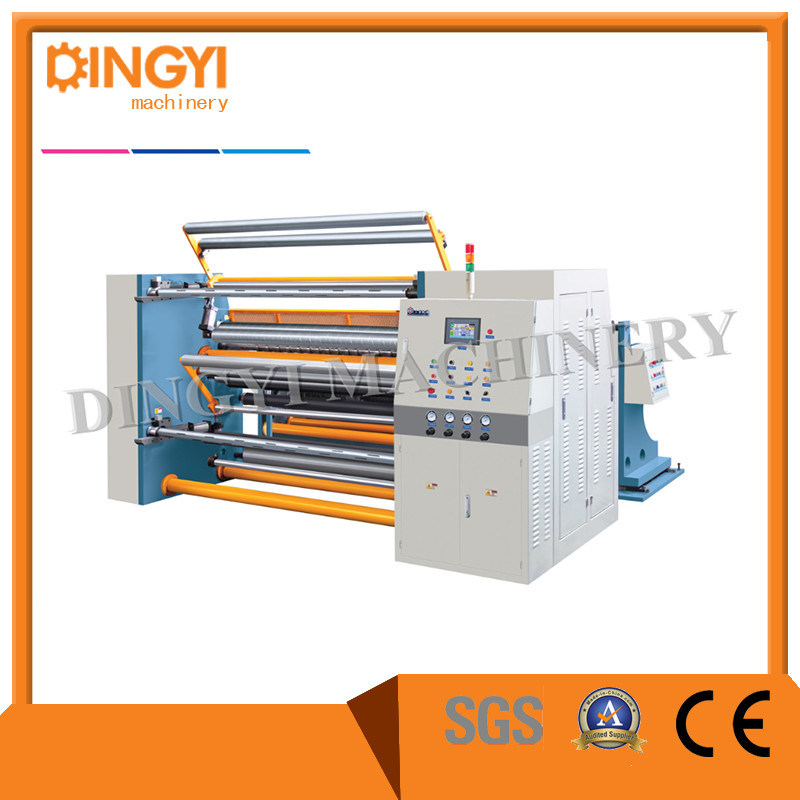

Computer Controlled Slitting Rewinding Machine

large.img.alt
small.img.alt small.img.alt

Large Image :  Computer Controlled Slitting Rewinding Machine Get Best Price

Product Details:
Place of Origin: ZHEJIANG CHINA
Brand Name: DINGYI
Certification: SGS CE
Model Number: SLM-C
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden and Soft Packing
Delivery Time: 50 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets Per year
Detailed Product Description
Suitable Substrates: Film Cutting Applicable To: Plastic Film, BOPP, PVC, Pet, PE, Aluminum Foil
Automatic Grade: Automatic Speed: 250m/min
High Light:

4.5m Slitting Rewinding Machine

,

7500KG Slitting Rewinding Machine

,

Thermal Paper Slitter Rewinder

MULTIFUNCTIONAL COMPUTER SLITING MACHINE





Main mechanical configuration:

  1. Entire machine's controlled by PLC, man-machine interface touch screen operation.
  2. Unwind adopts imported pneumatic brake control, PLCs automatically calculated by the rolling diameter's change, to achieve constant tension control
  3. Traction rollers are driven by vector variable frequency motor. Achieve constant linear velocity control and effectively cut off rewind and unwind tension's intervened.
  4. Rewind shaft uses firction is driven by a vector frequency motor. The rewind tension control is according to the rewind diameter, thincknessm tension set.Ect. After Operation by the PLC output signala, via control of the friction pressure, to achieve the purpose of winding tension
  5. Unwind lift adopts hydraulic feed, shaftless, which can save much labor force and shorten time.
  6. Auto meter presetting, EPC error correction, device is positive to assure the accuracy
  7. The feature of machine is stable, security, efficient etc.

Main technical parameter:

Jumbo roll width 2300mm
Diameter of unwind 1800mm
Diameter of rewind 10-1000mm
Slitting speed 250m/min
Total power 31KW
Weight 7500KG
Overall dimension (LxWxH) 4.5m4.5mx2.1m



Application: This machine is suitable for slitting and rewinding such various roll materials as slit paper, composit material, aluminium foil, printing film, PE OPP, PET, PVC, such as plastic film, ect. It is an ideal machine for printing packing company for processing





Computer Controlled  Slitting Rewinding Machine
