Melt blown Nonwoven Paper Surface Center Roll Slitter Rewinder

small.img.alt small.img.alt

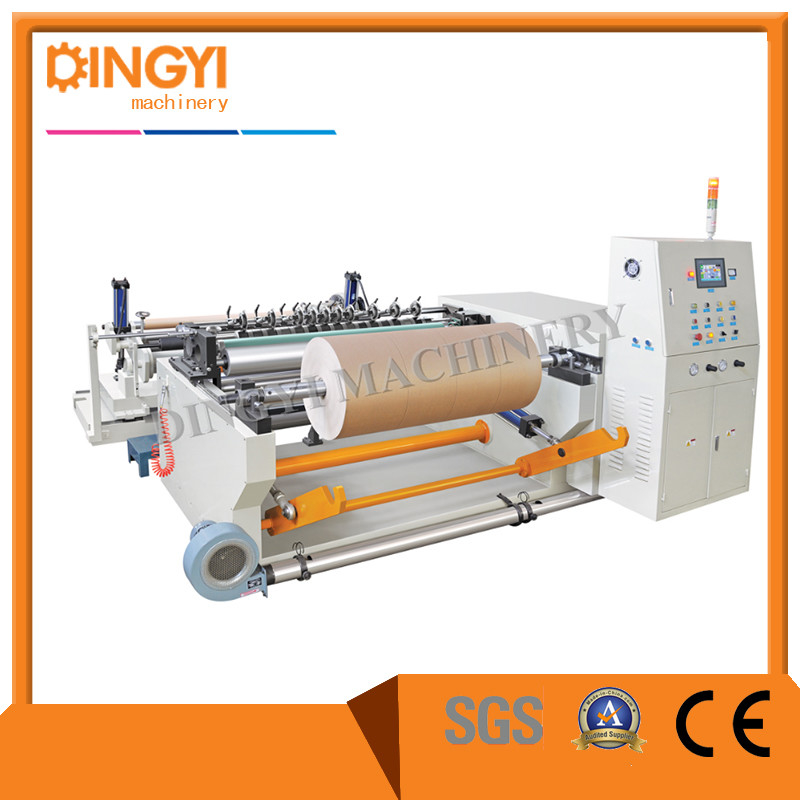

Large Image :  Melt blown Nonwoven Paper Surface Center Roll Slitter Rewinder Get Best Price

Product Details:
Place of Origin: ZHEJIANG CHINA
Brand Name: DINGYI
Certification: SGS CE
Model Number: SLD-I
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden and Soft Packing
Delivery Time: 50 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets Per year
Detailed Product Description
Suitable Substrates: Film Cutting Applicable To: Plastic Film, BOPP, PVC, Pet, PE, Aluminum Foil
Automatic Grade: Automatic Speed: 330m/min
High Light:

Surface Center Roll Slitter Rewinder


Roll Slitter Rewinder


Surface Slitter Rewinder



Application: This machine is manily used to slit stick paper, craft paper and toher kind of paper.

Main mechanical configuration:

  1. Entire machine's controlled by PLC, man-machine interface touch screen operation.
  2. Unwind adopts imported pneumatic brake control, PLC automatically calculated by the rolling diameter's change, to achieve constant tension control
  3. Traction rollers are driven by vector variable frequency motor. Achieve constant linear velocity control and effectively cut off rewind and unwind tension's intervened.
  4. Rewind shaft uses firction is driven by a vector frequency motor. The rewind tension control is according to the rewind diameter, thincknessm tension set.Ect. After Operation by the PLC output signala, via control of the friction pressure, to achieve the purpose of winding tension
  5. Unwind lift adopts hydraulic feed, shaftless, which can save much labor force and shorten time.
  6. Auto meter presetting, EPC error correction, device is positive to assure the accuracy
  7. The feature of machine is stable, security, efficient etc.

Main technical parameter:

Jumbo roll width 1300-1800mm
Diameter of unwind 1200mm
Diameter of rewind 10-1100mm
Slitting speed 300m/min
Total power 31KW
Weight 7500KG
Overall dimension (LxWxH) 4.9mx3.0mx1.8m



Melt blown Nonwoven Paper Surface Center Roll Slitter Rewinder
