180m min Non Woven 4 Colour Central Impression Flexo Press

small.img.alt small.img.alt

Large Image :  180m min Non Woven 4 Colour Central Impression Flexo Press Get Best Price

Product Details:
Place of Origin: ZHEJIANG CHINA
Brand Name: DINGYI
Certification: SGS CE
Model Number: DY-CI
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden and Soft Packing
Delivery Time: 50 Days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per year
Detailed Product Description
Type: Flexographic Printer Printing Speed: 150-180m/min
Color: Customizable Machine Type: High Speed Flexo Printing Machine
High Light:

4 Colour Central Impression Flexo Press


Non Woven Central Impression Flexo Press


Central Impression Flexo Printing Machine

Four Colors Central Drum Flexo Printing Machine


This central impression (central drum)flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.


Machine Main Parameter:


Feeding material part:

  1. Single unwinder system, pneumatic loader for unwind system.
  2. Automatic stop machine when break the material; When machine stop, keep tension and avoid the material loose or line deflection.
  3. Air shaft
  4. EPC (edge position control): With manually/automatically/ central return function, can adjust the rewind move left and right .
  5. Automatic tension control system with magnetic brake(10KG).
  6. Roller core diameter: 76mm
  7. Discharge maximum diameter: 600mm

Printing sections:

  1. Plate roller circumference: 300-1000mm, standard less than 400mm
  2. Print material: resin plate or rubber plate
  3. Transmission between printing roller and anilox roller: Helical gears
  4. Printing chromatography: 360-degree rotation
  5. Adjustment method: Adjustment for plate cylinder automatically by motor (Motor adjustment for plate cylinder Automatically, when start machine, no need register color again, the printing pressure and register all keep the same.)
  6. Printing roller lifting system: Automatic pneumatic cylinder control roll up and down.
  7. Adjustment method:Adjustment for caramic roller and plate cylinder by motor(move ceramic roller and plate cylinder in and out automatically by motor

Drying system:

  1. The machine is equipped with blower and heater; and the heater employed central temperature control system
  2. Dry apparatus between each color, and one more dry apparatus after printing finished

Rewinding Part:

  1. Single rewinder system, pneumatic loader for rewind system.
  2. Surface rewinding with automatic pneumatic cylinder shift.
  3. Air shaft
  4. Automatic tension control system with magnetic brake(10KG).
  5. Roller core diameter: 76mm
  6. Discharge maximum diameter: 600mm
  7. 180m min Non Woven 4 Colour Central Impression Flexo Press

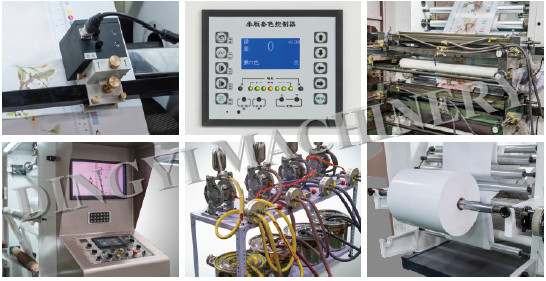

Sample of Pritnting

180m min Non Woven 4 Colour Central Impression Flexo Press

Every machine will be tested before shipment. And send video, sample, and container load photo one by one.
