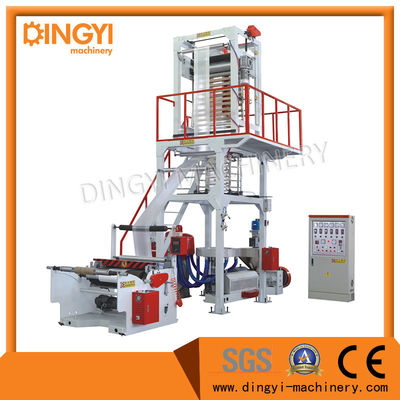

Semi-Automatic High Speed HDPE Film Blowing Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Semi-Automatic High Speed HDPE Film Blowing Machine Get Best Price

Product Details:
Place of Origin: ZHEJIANG CHINA
Brand Name: DINGYI
Certification: SGS CE
Model Number: DY/HL
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden And Soft Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets Per Year
Detailed Product Description
Type: High Speed Film Blowing Machine Material: HDPE
Automatic: Yes Warranty: 1 Year
High Light:

HDPE Monolayer Blown Film Plants

,

SGS Monolayer Blown Film Plants

,

Mono layer Blown Film Machinery

Semi-Automatic High Speed HDPE Film Blowing Machine





Machine Specification And Feature


1. Suitable Material: HDPE,

2. Machine with Semi-Automatic winder
2. The machine body is U-Steel frame. And the main machine is collocated with low-center gear box, with advantages of stable transmission, large torque, and convenient repair.
3. The machine cylinder and screw adopt 38 crmoala alloy steel, after nitrogen treatment, it has high rigidity, good anti-corrosive performance and is rather durable.
4. During heating course, this machine can automatically control and regulate temperature according to craft requirements, with simple operation.





Blown Film Equipment Features:

Single Winder , Screen Changer ,

Delta Inverter For (The Main Motor, Take-up Motor, Winder And Air Blower,)

Banana Roller , Air Blower





MODEL DY/H-45E DY/H-50E DY/H-55E DY/H-65E
SUITABLE MATERIAL HDPE
FILM WIDTH 300-600mm 300-800mm 400-1000mm 600-1300mm
FILM THICKNESS 0.009-0.05mm 0.009-0.05mm 0.009-0.10mm 0.01-0.10mm
MAX.EXTRUSION OUTPUT 30-55kg/hr 35-70kg/hr 40-85kg/hr 60-110kg/hr
EXTRUDER
SCREW DIAMETER φ45 φ50 φ55 φ65
SCREW L/D LENGTH 30:1
SCREW MATERIAL SACM-645/38 CRMOALA
CYLINDER MATERIAL SACM-645/38 CRMOALA
CYLINDER COOLING 370W×2 370W×2 550W×3 550W×4
DRIVING MOTOR 15Kw 18.5Kw 22Kw 37Kw
TEMPERATURE CONTROL 3 3 3 4
AVERAGE POWER-CONSUME 18Kw 26Kw 31Kw 45Kw
TYPE OF DIE
DIE SIZE φ60/80 φ80/100 φ100/120 φ100/120
CENTER STEADY STICK 2
TEMPERATURE CONTROL 3
AIR RING 1
AIR BLOWER 1.5Kw 2.2Kw 3Kw 5.5Kw
TAKE-UPUNIT
ROLLER WIDTH φ165×650mm φ165×850mm φ165×1100mm φ165×1400mm
EFFECTIVE WIDTH 600mm 800mm 1000mm 1300mm
TAKE-UP SPEED 10-100m/min 10-100m/min 10-90m/min 10-90m/min
TAKE-UP MOTOR 0.75Kw 1.5Kw 1.5Kw 1.5Kw
HEIGHT ADJUSTABLE TYPE 700mm
WINDING UNIT
TYPE SURFACE FRICTION TYPE
WINDING MOTOR 6N.m 10N.m 16N.m 16N.m
WINDING SPEED 10-100m/min 10-100m/min 10-90m/min 10-90m/min
OVERALL DIMENSION(L×W×H) 4.0×2.0×4.5m 4.0×2.5×4.5m 4.8×2.8×5.2m 5.2×3.4×5.8m



Semi-Automatic High Speed HDPE Film Blowing Machine



Semi-Automatic High Speed HDPE Film Blowing Machine



Semi-Automatic High Speed HDPE Film Blowing Machine
