Fully Automaic Two Layer Six Lines Bottom Sealing Bag Making Machine

I'm Online Chat Now
I want to say that your products are very good. Thank you for all your suggestion, also good after sales service.

—— Diego Rodofeli

You always suggestion and efforts help us a lot,. Hope we build long time cooperationship

—— Lic. Aldo L. Cavallaro A.

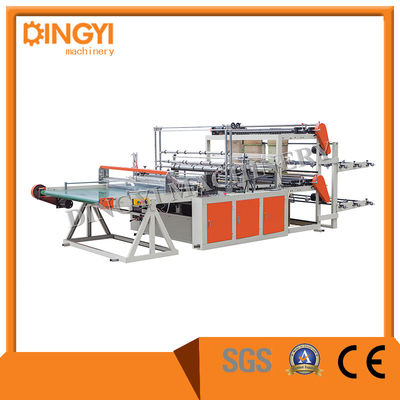

Fully Automaic Two Layer Six Lines Bottom Sealing Bag Making Machine

large.img.alt
small.img.alt small.img.alt

Large Image :  Fully Automaic Two Layer Six Lines Bottom Sealing Bag Making Machine Get Best Price

Product Details:
Place of Origin: ZHEJIANG CHINA
Brand Name: DINGYI
Certification: SGS CE
Model Number: FRDF-D SERIES
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden and Soft Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets Per year
Detailed Product Description
Material: PE. HDPE. LDPE Product Name: PE Bag Making Machine
Servo Motor: Japan Yaskawa Bag Type: T-Shirt Bag
High Light:

3000mm Plastic Bag Manufacturing Plant

,

2KW Plastic Bag Manufacturing Plant

,

Plastic Bag Manufacturing Machine

Fully Automaic Two Layer Six Lines Bottom Sealing Bag Making Machine



Double-layer, Six lines bottom sealing bag making machine has such functions as photoelectric automatic tracking microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value. High compensation accuracy with such characteristics as neatbags, little error and high automatic of whole machine, so it is a kind of ideal equipment for producing blank bags, color bags, flat bags and vest bags. And other various plastic soft packing bags.

Standard equipment
Relay, electromagnetic valve, servo motor, transducer, computer control system, cylinder, inverter, temperature controller, color patch photoelectric, heating system, button switch, DC motor, approach switch, temperature system



. SPECIFICATION:

  • Model: DY-DF-1000
  • Max. Width (mm):300×6mm
  • Max. length (mm):1000mm
  • Photocell: 1
  • Cutting Thickness (mm):0.009-0.10mm
  • Bag Output (pcs/min):30-120pcs/min×6
  • Servo motor : 2KW
  • Feeding Motor: 400w
  • Weight (kg):1500kg
  • Overall Dimensions (L×W×H)(mm): 3000×1900×1600

Fully Automaic Two Layer Six Lines Bottom Sealing Bag Making Machine
