HDPE LDPE Draw Tape 50 Micron Plastic Bag Manufacturing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PE. HDPE. LDPE | Product Name: | Fully Automatic PE Bag Making Machine |
|---|---|---|---|
| Servo Motor: | Japan Yaskawa | Bag Type: | Garbage Bag |
| High Light: | HDPE LDPE Bag Manufacturing Machine,Plastic Bag Manufacturing Machine,50µm Bio Carry Bag Making Machine |
||

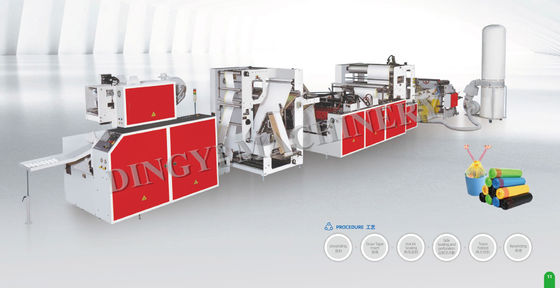

Fully Automatic Draw Tape Garbage Bag On Roll Making Machine
FEATURES:
1. Suit for LDPE ,HDPE,
2. Overlap Bags or perforation bags 2 options
3. Top Hot Air Sealing Design
4.Shuttle System+Double Sealing Knvice System
5.Twice Folded Device
6. Automatically Convey the rolling bag to collecting table
7. 13 pcs servo motors control whole machine
Application
HSCS-1000 is a multi-function machine makes both draw tape garbage bag and bottom sealing bag on roll. The machine are double sealing knives with sway unit design, YASKAWA motion control computer system, using 13 pcs servo motors control, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE.
Parameter:
| Model | HSCS-1000 |
| Width of bags | 1000mm |
| Length of bags | 900mm |
| Film thickness | 10-50µm per layer |
| Unwind Film Size | Φ600mm |
| Bag making speed | 150pcs/min*2Lines |
| Roller Change Speed | Max.10Pcs |
| Width of Draw Tape | 100mm |
| Draw Tape Roll Diameter | 600mm |
| Roll Width | 300mm |
| Roll Diameter | Φ150mm |
| Total Power | 25kw |
| Air Consumption | 5HP |
| Machine weight | 4200KG |
| Machine Diameter (LxWxH) | 1500x2000x2100mm |
